Project 01 · Architectural Design

Karting

One architectural project developed through two façade proposals: Diamond and Square.

Karting Diamond façade beside the outdoor circuit

Project Type

Professional Work · Collaborative Project

My Role

Concept Design · Partial Floor Plan Design

Contribution

Contributed to conceptual design development and floor plan design for selected areas as part of a collaborative design team.

Concept Design

Concept proposal walkthrough.

A walkthrough of the Karting concept design proposal.

Option 01

Diamond

Diamond façade proposal

Karting Diamond façade perspective
Diamond façade · perspective
Karting Diamond option trackside perspective
Diamond façade · trackside
Karting Diamond option track frontage
Diamond façade · track frontage
Karting Diamond option site and circuit
Diamond façade · site relationship

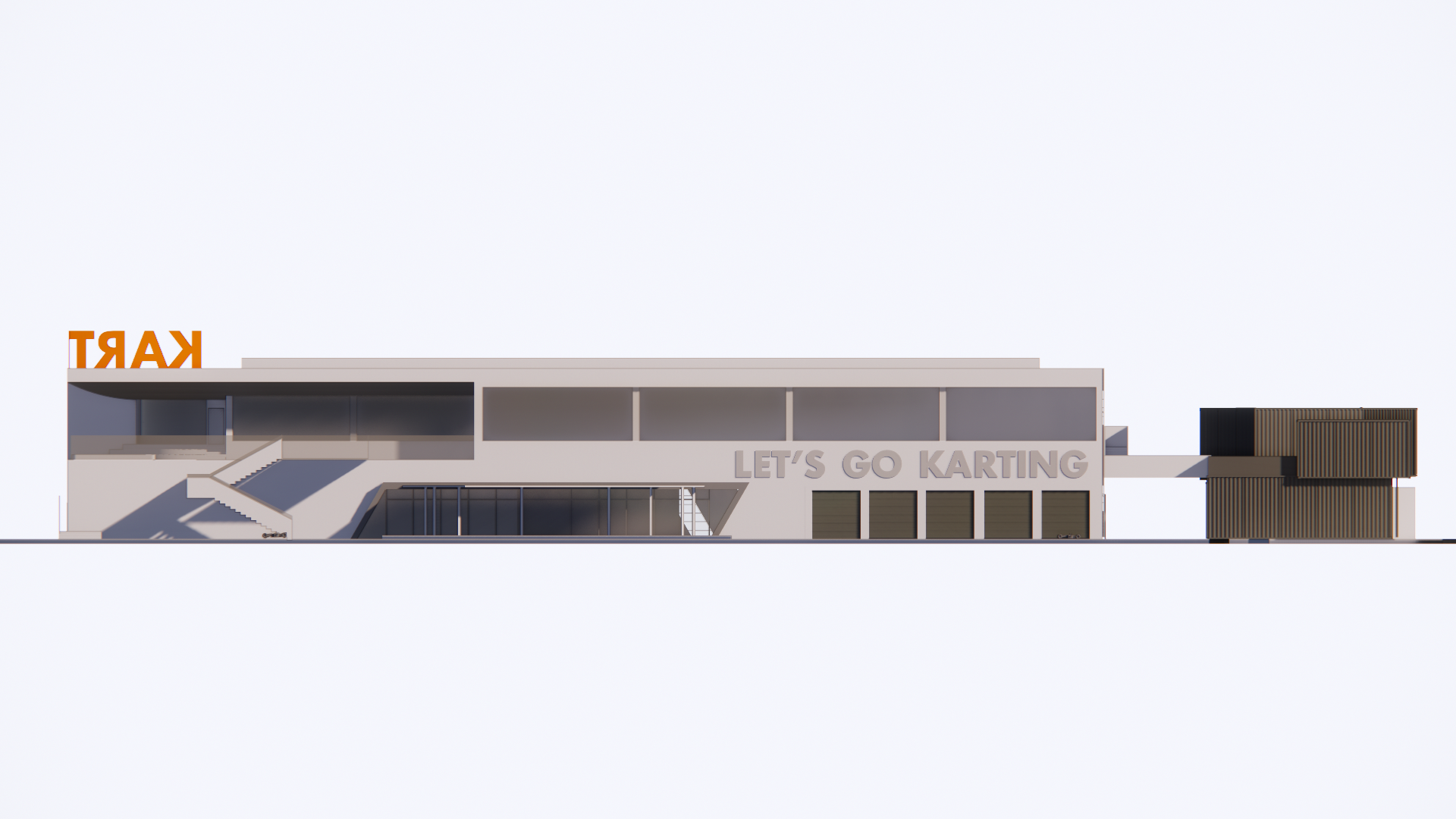

Karting Diamond option south elevation
Diamond option · south elevation

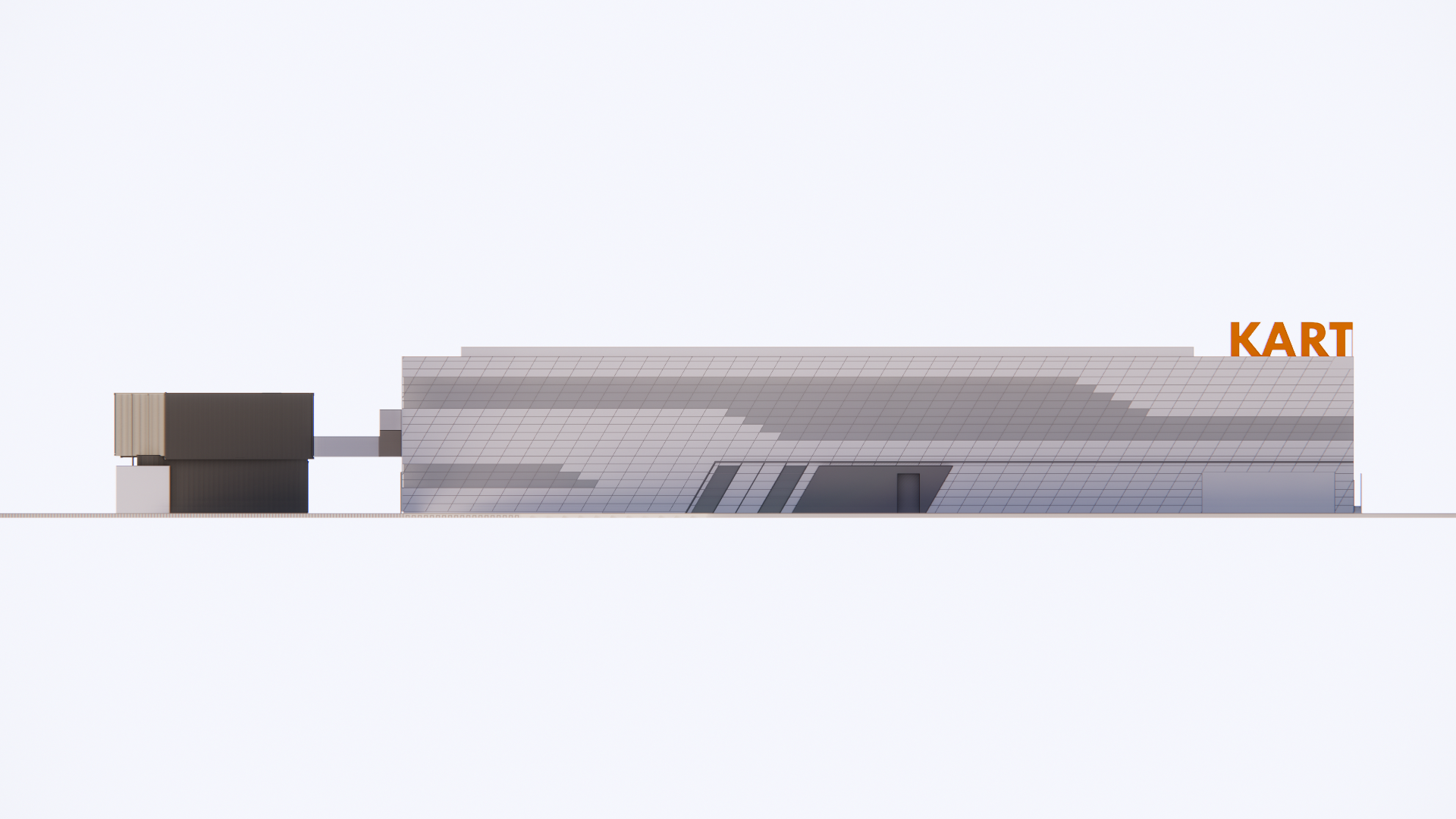

Karting Diamond option north elevation
Diamond option · north elevation

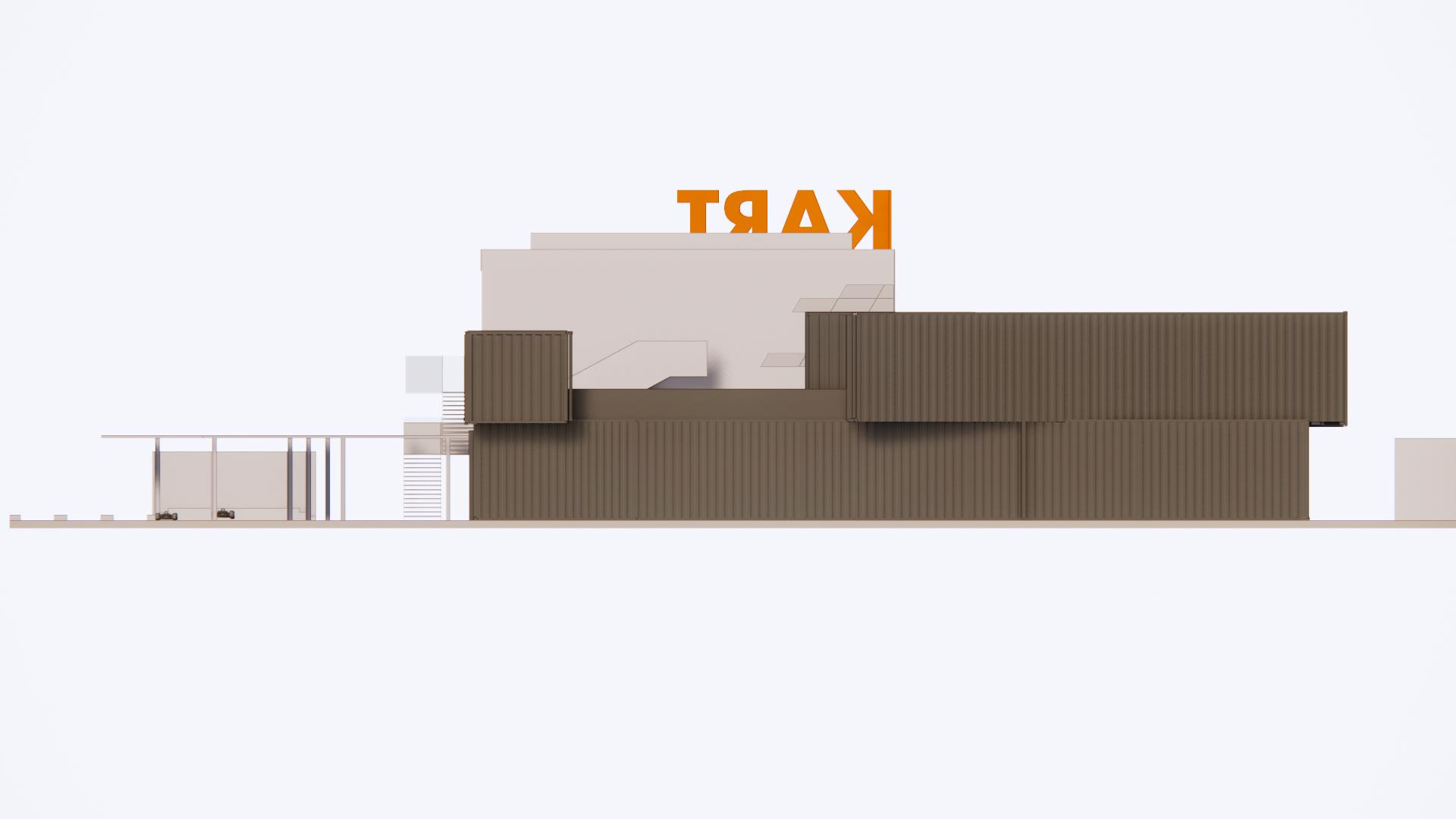

Karting Diamond option west elevation
Diamond option · west elevation

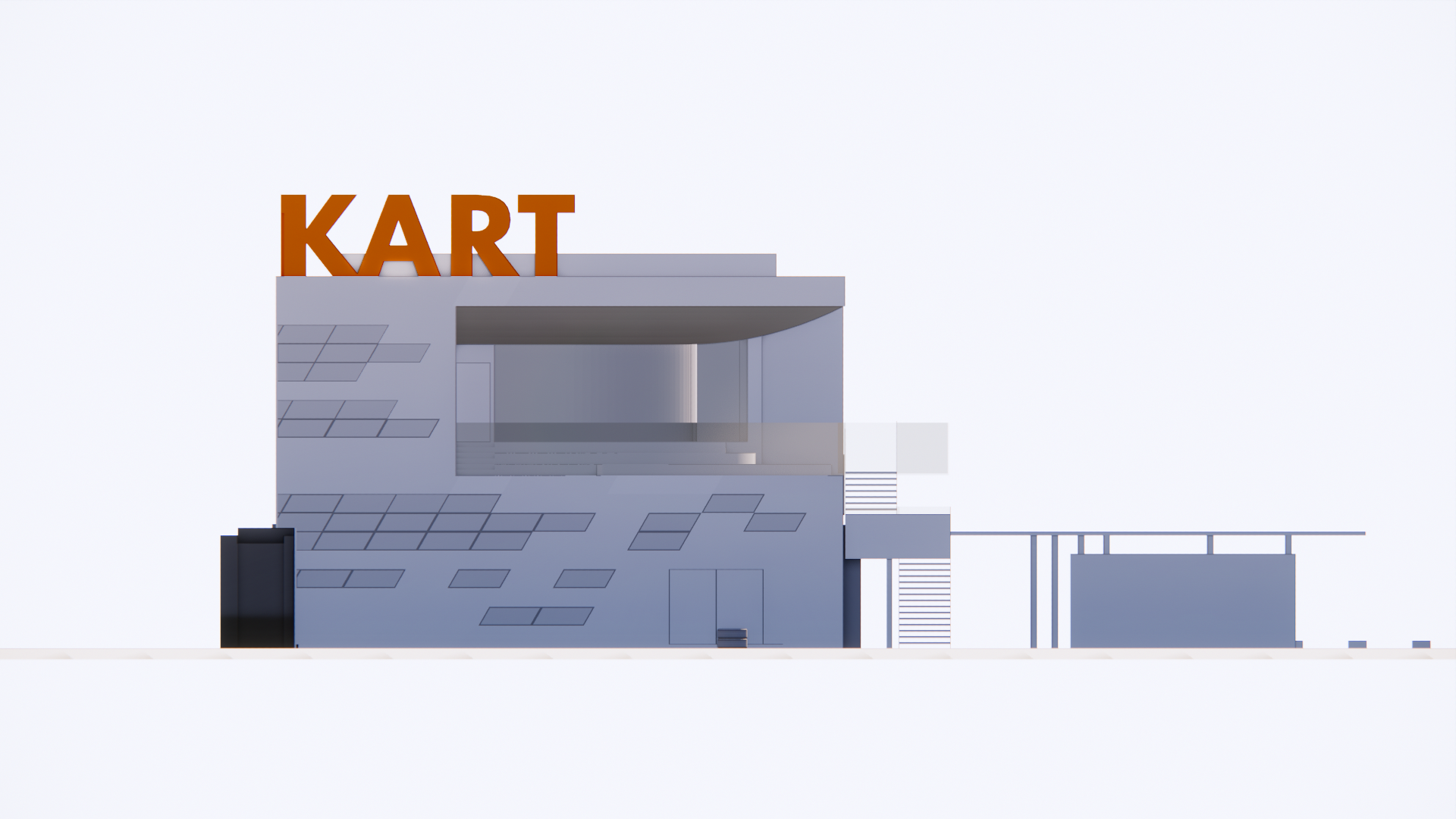

Karting Diamond option end elevation
Diamond option · end elevation A

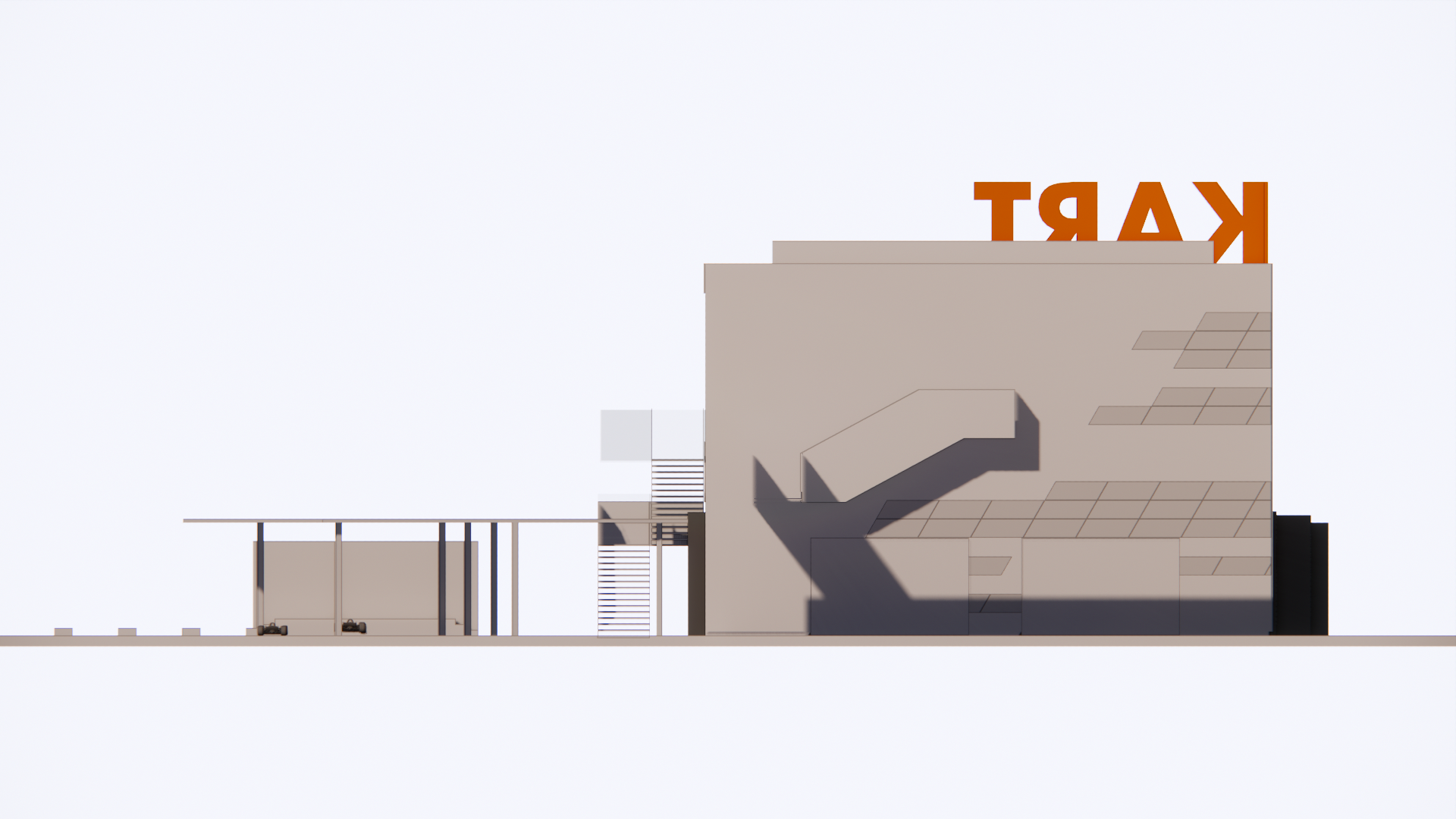

Karting Diamond option alternative end elevation
Diamond option · end elevation B

Option 02

Square

Square façade proposal

Karting Square façade overall perspective
Square façade · overall perspective
Karting Square façade entrance perspective
Square façade · entrance

Floor Plans

Project plans.

Selected floor plan drawings for the shared building and circuit layout.

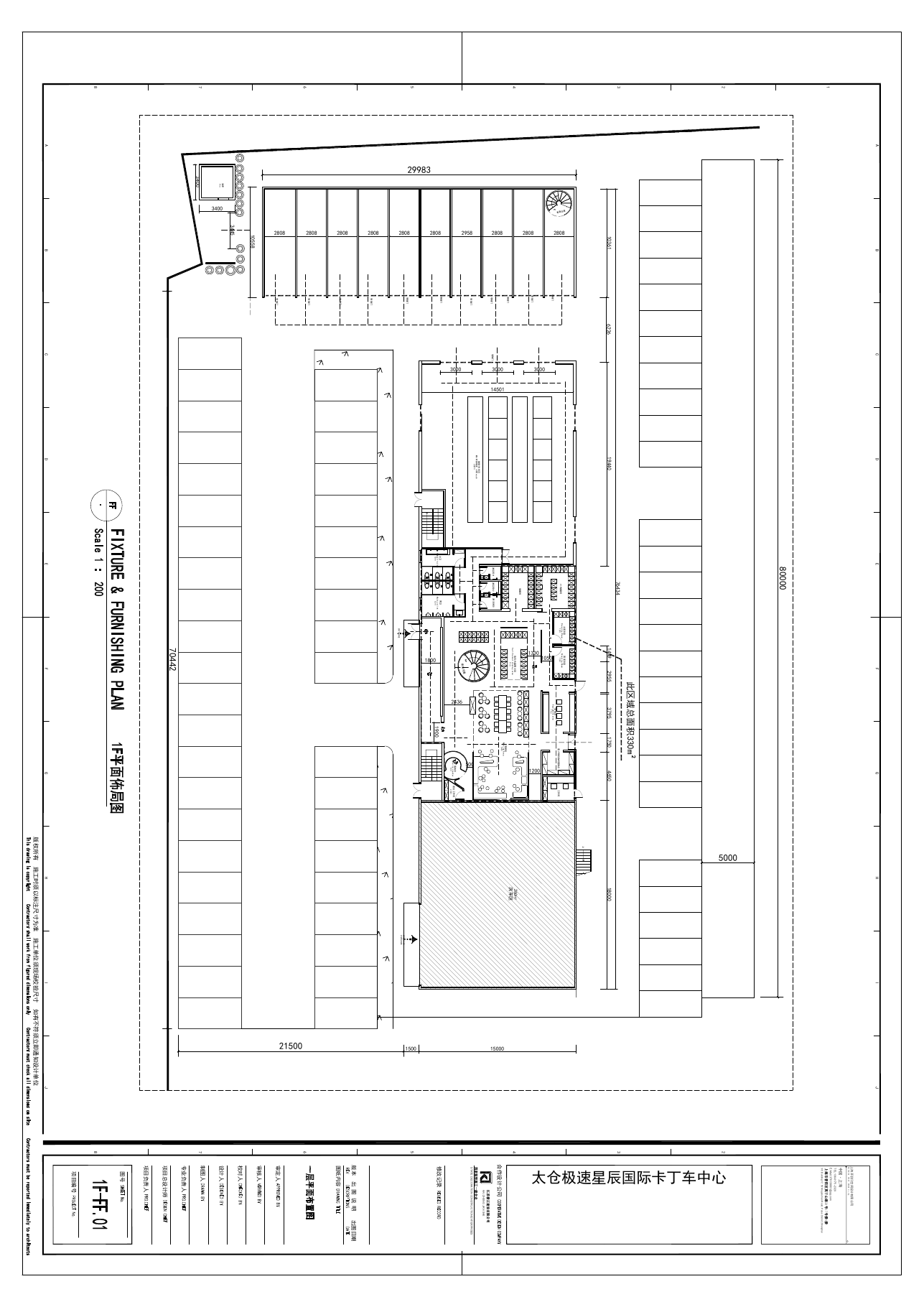

Karting plan sheet one
Plan drawing · sheet 01

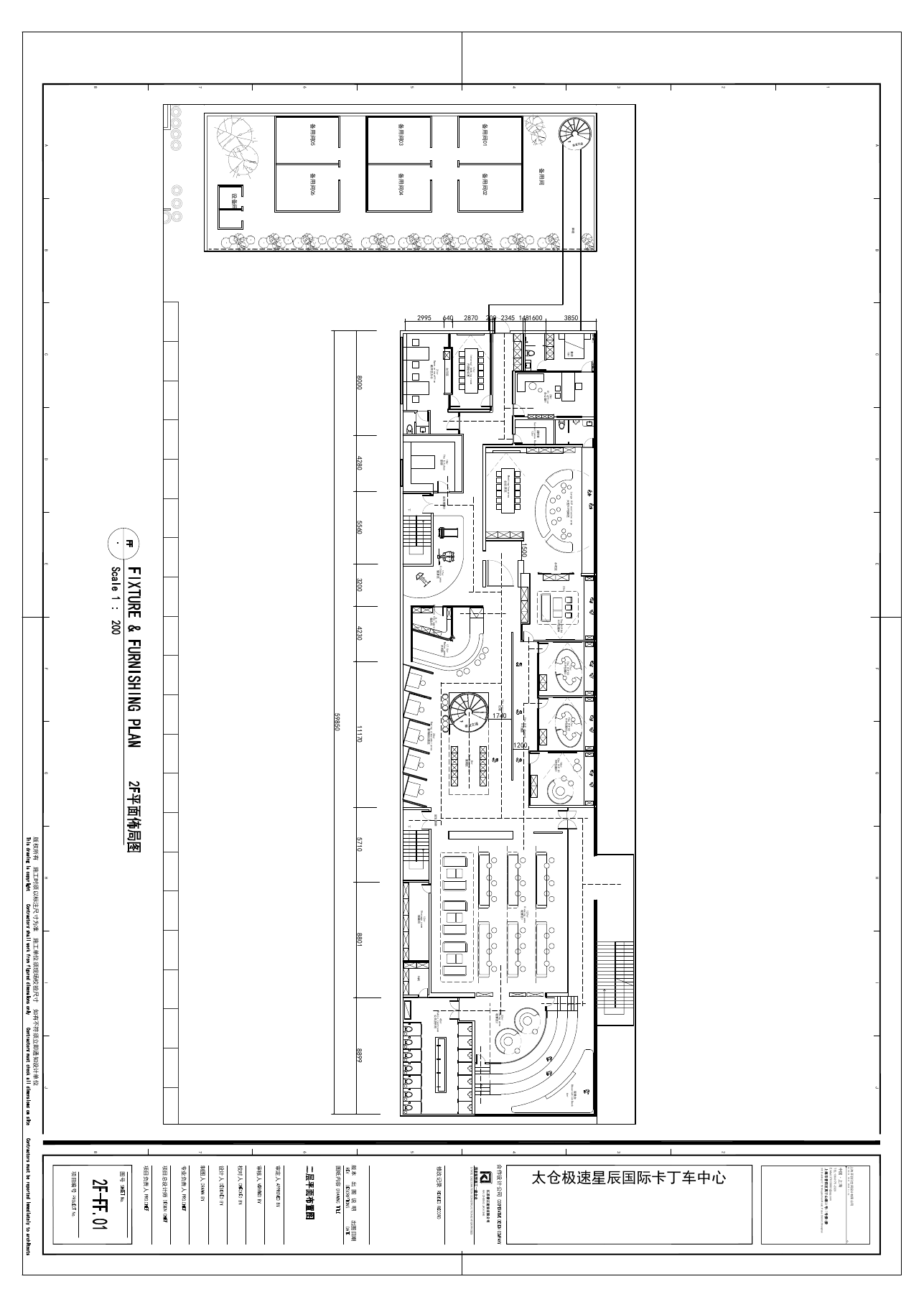

Karting plan sheet two
Plan drawing · sheet 02
